Why Use PIC Assembly Instead of Arduino/ESP32?
Most examples online use high-level microcontrollers.
This project is different — it’s built for speed, reliability and precision.
✔ No operating system
✔ No Arduino bloat
✔ Cycle-perfect timing
✔ Ultra-low power
✔ Microsecond-level accuracy
✔ Starts instantly
✔ Production-grade reliability
The schematic and parts list for this project is free below, but for the assembly code to make it all work I do ask for a small fee to download it instantly here or here on Etsy. This is to help support me and keep the blog running.
What does this project do? This digital thermistor will display the current temperature between 0-99° Celsius (centigrade). The display is beautifully multiplexed using just I/O pins. All written in assembly language for mplab (mpasm) 8.92 or earlier on windows (the beautiful version when mplab was at its greatest before the launch of the horrid mplab x).
Disclaimer Notice: This is an educational tutorial only and I will not accept any responsibility for damage or harm to property and/or persons as a result of you following and building this tutorial project. You are responsible for your own safety and performing any safety tests if used commercially. Ideally we recommend this for use only in personal/hobby projects.
The PIC16F628 is a fantastic versatile chip. It’s low cost and is tonnes cheaper than Arduino.
Use this assembly code to flash the PIC16F628 chip, any programer will do. Then build the circuit per the schematic and parts list below, switch it on and hey presto!
Components needed:
You can buy most of these from AliExpress, Amazon or eBay for pennies:
- PIC16F628 04/P (ensure its the 4 Mhz version, denoted by the 04/P)
- Dual 7 Segment Display (common anode). Not common cathode.
- DS18B20 (also on Amazon)
- 0.1uF ceramic capacitor, 2 x 470ohm, 4.7k ohm, and 10k ohm resistors
And that’s it!

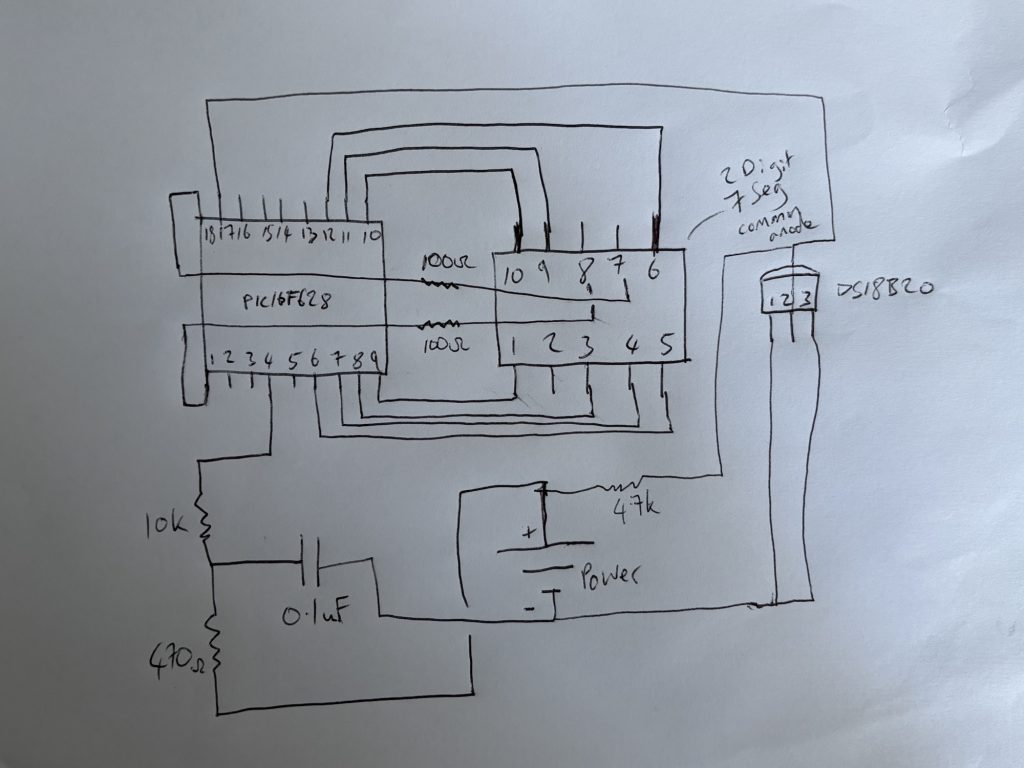

Hardware Schematic
Just look how lean this hardware is, minimum components used. Here in the schematic but it also can be used as the finished pcb layout if tweaked slightly:
Fig:1
Fig:2
Fig 2 shows the schematic laid out on a breadboard. The blue device on the right is simply a power supply of 5 volts but you can use your own.
3. CODE TIME: flash with the assembly code (download it instantly here). If you want to modify it just follow the comments in code or reach out to me for assistance at patrick@odonodesign.com
Power up the circuit, and there you go, the project is complete! Place it its final location and watch it monitor the temperature!
Enjoy!
